Stainless Steel Fender Washers
Large OD Stainless Steel Washers for Load Distribution and Surface Protection
Stainless Steel Fender Washers use a large outside diameter, central fastener hole and relatively thin flat section to increase bearing area on panels, sheet metal and softer materials.
Product Overview

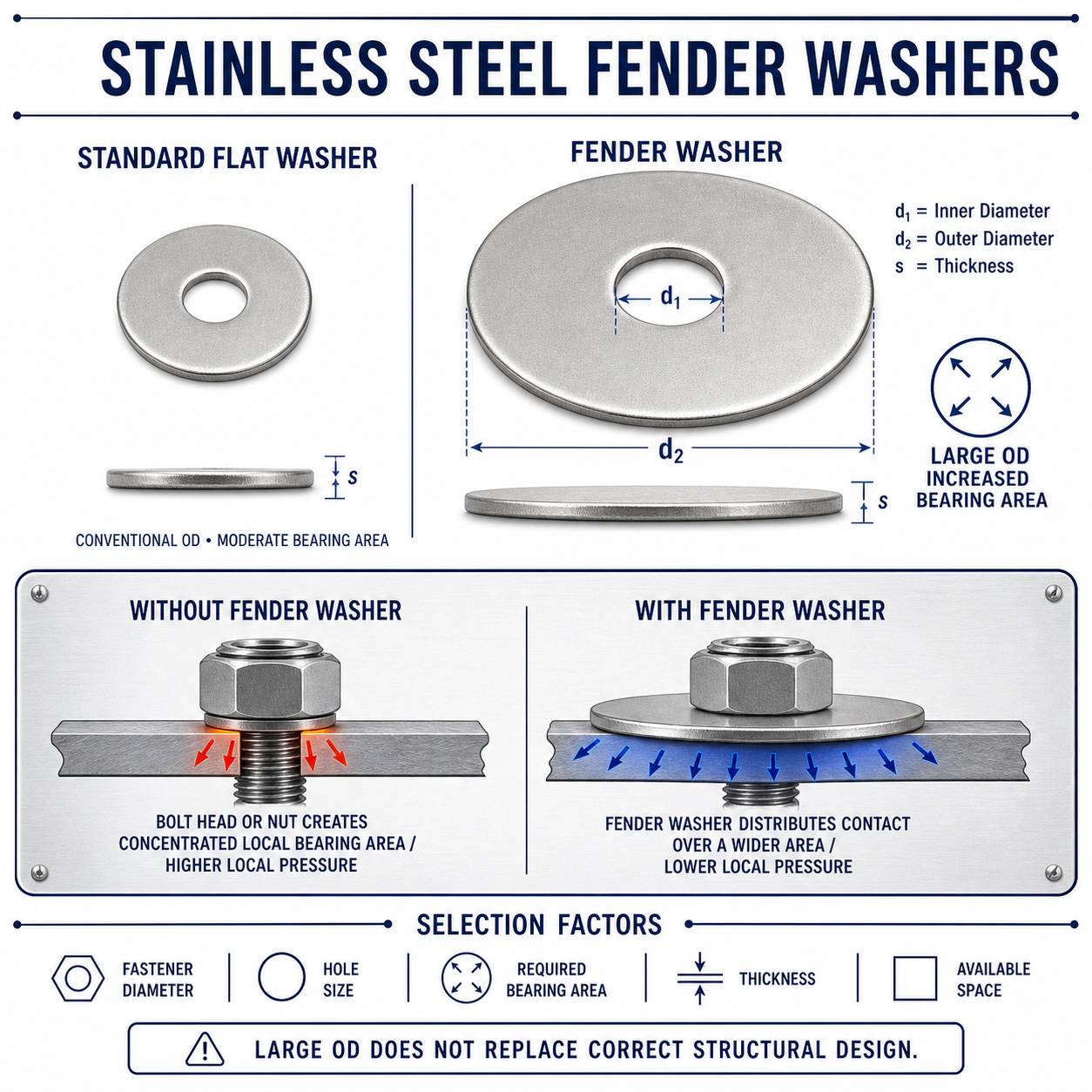

A Fender Washer is a flat circular plain washer with a substantially larger OD-to-ID relationship than a standard flat washer. The expanded bearing face—not a locking profile—is its defining feature.
Installed beneath a bolt head, screw head or nut, the broad surface spreads clamp load, reduces local surface pressure, supports thin or softer materials and may reduce pull-through risk when correctly selected.
Buyers should specify d1 ID, d2 OD, thickness s, material, SAE/USS/customer reference, fastener size, application, quantity and drawing. Larger OD is not automatically better and does not replace correct fastener or structural design.
Technical Specifications
Large OD, Bearing Area & Washer Selection
304 / 316 Stainless Steel & Size Options
OEM Dimensions & Manufacturing Capability
Inner diameter, outer diameter, thickness, material, surface finish and packaging.
SAE, USS, customer drawing or sample.
Provide fastener size, OD, thickness, material, quantity, application and drawing. Export and authorized private-label packaging available.
Dimensional Accuracy & Quality Control
Applications

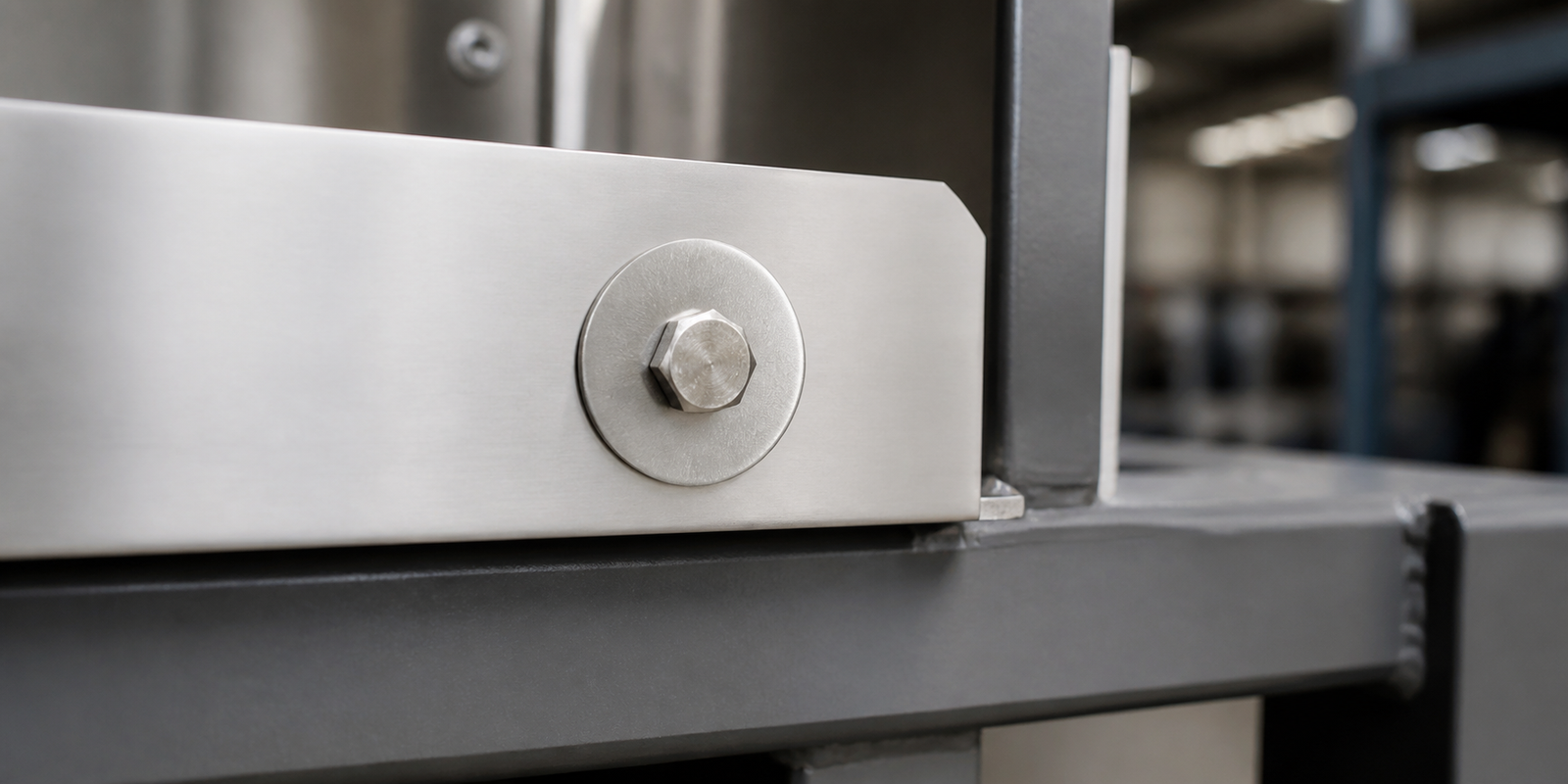

Distributes fastening pressure across thin metal components.
Broad bearing support in brackets and industrial assemblies.
304/A2 and 316/A4 options selected for exposure.
Supports softer panels and may reduce pull-through risk.
Custom ID, OD, thickness and material by drawing.
Frequently Asked Questions
What is a Fender Washer?
A large outside diameter plain washer designed to increase bearing area compared with a standard flat washer.
How does it differ from a Flat Washer?
It has a much larger OD-to-ID relationship where additional surface support is required.
Can Fender Washers be supplied in 316 Stainless Steel?
Yes. 316/A4 is available for more corrosion-sensitive applications.
Are Fender Washers suitable for thin materials?
They commonly distribute load on thin or softer materials, but final selection depends on the complete assembly.
Can VALTOR manufacture custom Fender Washers?
Yes. Custom ID, OD, thickness, material and drawing-based production are available.
Related Products
Share fastener size, required ID, OD, thickness, material, application, drawing and quantity with VALTOR.
