Stamped & Formed Parts
Custom Stainless Steel Stamped, Bent & Formed Components Made to Drawings
VALTOR supplies custom stamped and formed metal components manufactured according to customer drawings, samples and project requirements. Our main focus is stainless steel brackets, connection plates, supports, clips, retaining parts and project-specific hardware.
Material grade, sheet thickness, formed geometry, hole patterns, surface finish and assembly requirements are reviewed according to each component and application.
Custom Stamping & Forming for Industrial Hardware
Drawing-based stainless steel components for construction, equipment and OEM projects.
VALTOR supplies drawing-based stamped and formed hardware for industrial, construction, façade, equipment and OEM applications. Typical parts include mounting brackets, connection plates, support plates, angled components, U-shaped parts, offset parts, spring clips, retaining components and other custom hardware.
The manufacturing route depends on material, sheet thickness, part geometry, bend or formed geometry, hole pattern, tolerance, surface requirement and quantity. Depending on the actual part, production may involve cutting, punching, stamping, bending, press forming, drilling, tapping, deburring and selected secondary operations.
For quotation, provide the drawing or 3D model, material, sheet thickness, dimensions, bend details, formed features, hole locations, tolerances, surface finish, quantity and application. Complete inputs allow manufacturability, inspection and project supply requirements to be reviewed before production.
What We Can Manufacture
Stamped and formed capability organized around real component functions.
Construction & Façade Hardware
Angle Brackets · Connection Plates · Bent Fixing Clips · Façade Supports · Installation Hardware

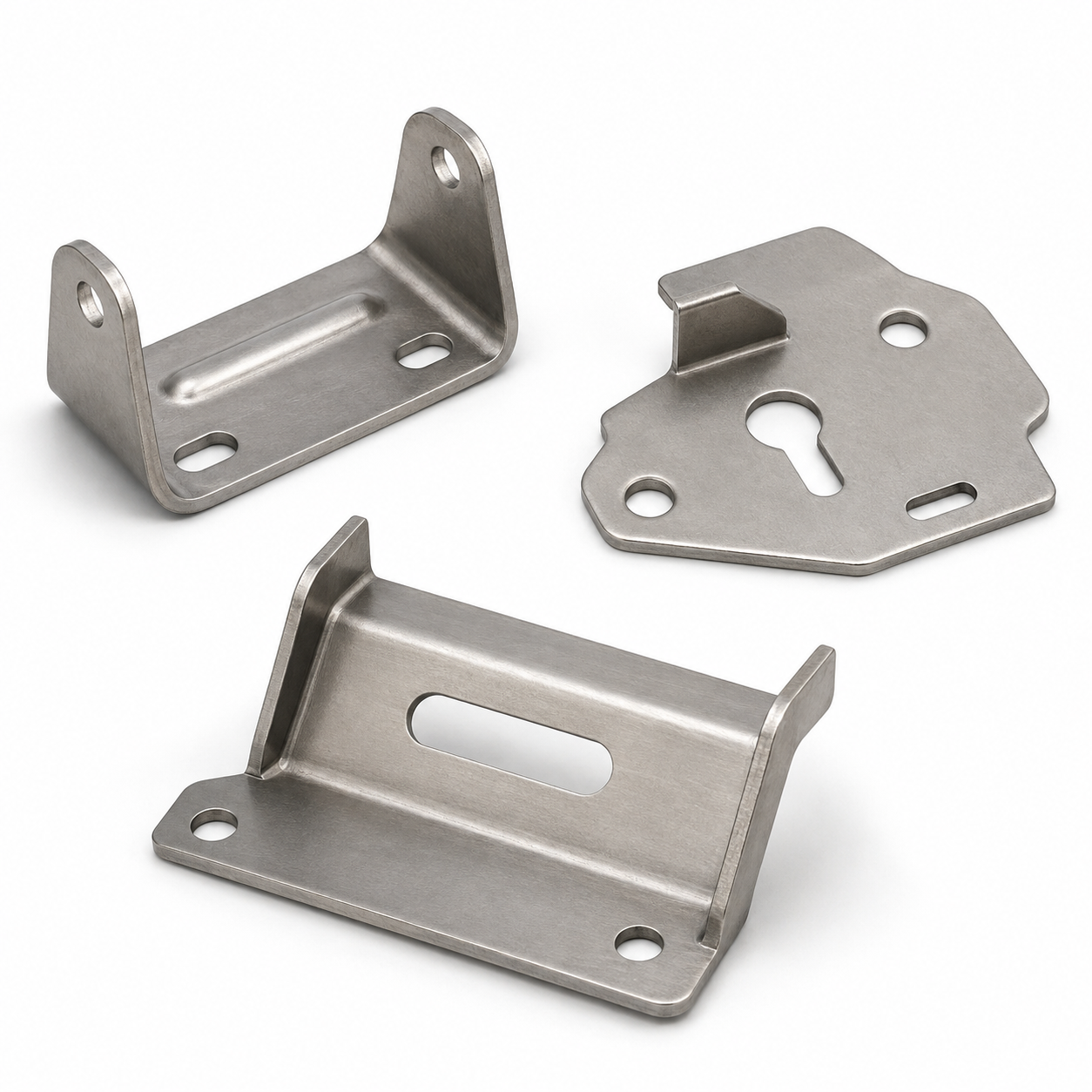

Machinery & Equipment Components
Equipment Brackets · Formed Stop Plates · Retaining Plates · Industrial Supports · Assembly Hardware

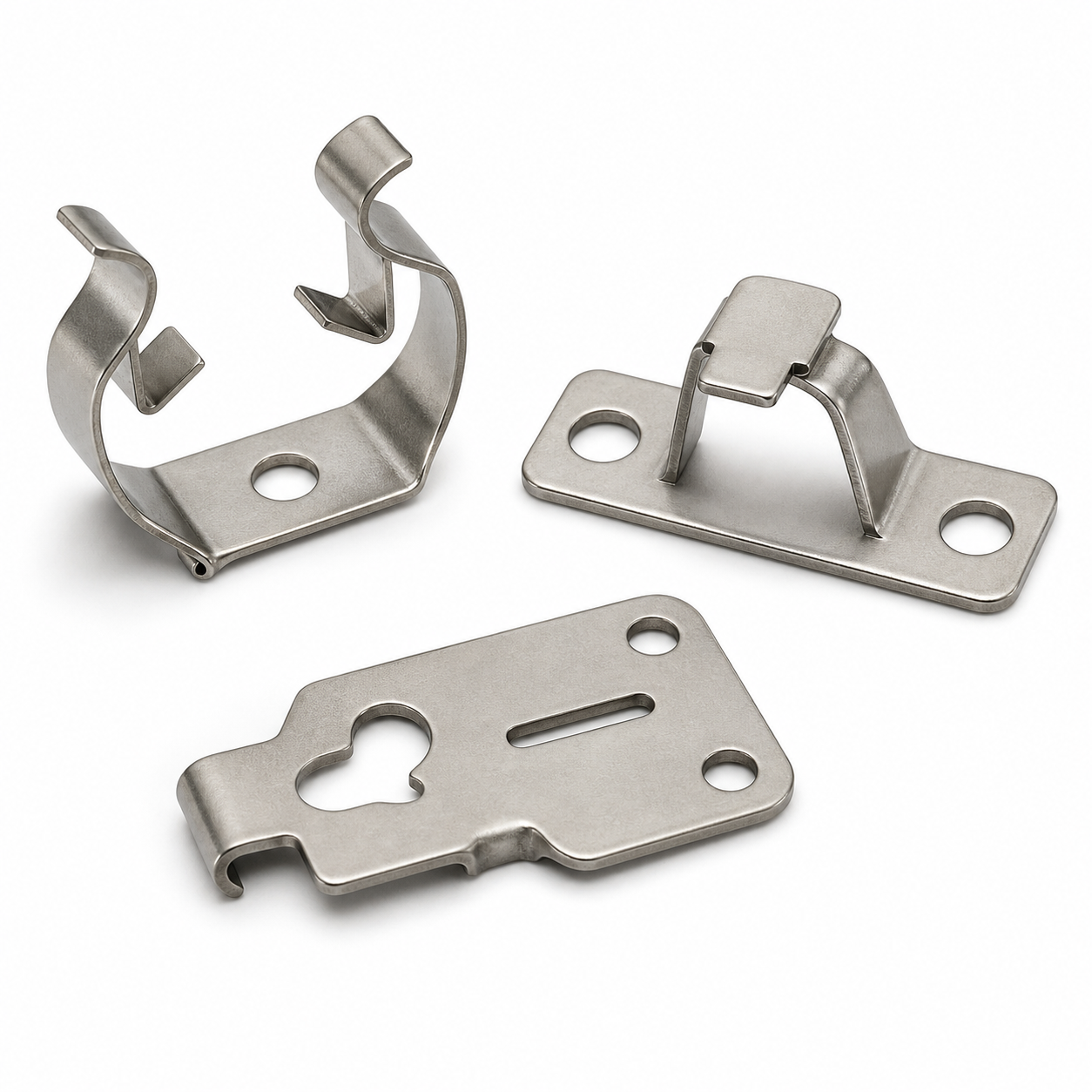

Electrical & Enclosure Hardware
Spring Clips · Fixing Clips · Enclosure Mounts · Retaining Components · Cabinet Hardware
Mounting Brackets & Supports
L Brackets · Offset Brackets · U-Shaped Supports · Z Profiles · Drawing-Based Mounting Parts
Stamped Plates & Retaining Parts
Hole-Pattern Plates · Stop Plates · Tabs · Notches · Slotted Parts · Custom Stamped Outlines
Drawing-Based Special Parts
Multi-Bend Parts · Press-Formed Components · Assembly Features · Customer-Specific Project Hardware
Stainless Steel & Sheet Material Options
Stainless steel is VALTOR’s main material for stamped and formed OEM hardware.
304 Stainless Steel
General industrial, architectural and outdoor formed hardware.
316 Stainless Steel
Suitable for more corrosion-sensitive, coastal and humid applications.
321 Stainless Steel
Available where project requirements specify stabilized stainless steel.
310S Stainless Steel
Available for suitable higher-temperature applications.
2205 Duplex
Available where higher strength and improved chloride resistance are required.
2507 / 904L
Available according to special project requirements and material sourcing.
Other Materials
Carbon steel, aluminum and other project-specified metals where required.
Special grades and alternative materials are available according to order requirements and material sourcing; this does not imply standard stock or unsupported performance guarantees.
Stamping, Forming & Drawing Requirements
Dimensions, bend radii and tolerances are reviewed according to the material, thickness, geometry and manufacturing route.
Bending & Forming
90° Bends · Multiple Bends · Offset Bends · Z Profiles · U Profiles · Flanges · Drawing-Based Forming
Hole Features
Round Holes · Slots · Mounting Holes · Countersunk Holes · Tapped Holes · Hole Patterns · Custom Openings
Edge & Profile Features
Stamped Profiles · Tabs · Notches · Slots · Chamfers · Rounded Corners · Custom Contours
Assembly Features
Welded Studs · Nuts / Inserts · Fastener Assembly · Multi-Part Fabrication where required by the drawing and suitable for the component
Dimensional Requirements
Overall Length · Width · Sheet Thickness · Hole Position · Bend Position · Bend Angle · Flange Height · Offset Distance
Surface Requirements
Natural Stainless · Brushed Finish · Polishing · Passivation · Coating where applicable · Customer-Specified Finish
Typical production routes may include cutting, punching, stamping, bending, press forming, drilling, tapping, deburring and secondary machining according to drawing requirements and component geometry.
From Drawing to Stamped or Formed Part
A controlled six-step path from requirement review through delivery.
Drawing, material, thickness, quantity and application.
Cut geometry, forming sequence, holes and assembly requirements.
Stainless grade, sheet thickness and surface requirement.
Sample or first article where required.
Manufacturing to the approved drawing and inspection requirement.
Protect formed surfaces for export or customer delivery.
Quality Control for Stamped & Formed Components
Inspection scope is defined by the drawing and project requirement.
Dimensional Inspection
Length · Width · Thickness · Hole Diameter · Hole Position · Critical Dimensions
Form & Geometry Inspection
Bend Position · Bend Angle · Offset · Flange Dimensions · Overall Form
Material & Surface Verification
Material Grade · Surface Condition · Finish · Burrs · Visible Damage
Functional & Assembly Inspection
Bracket Fit · Hole Alignment · Clip Function · Assembly Fit · Mating Components where required
Documentation availability: MTC · Raw Material Report · Dimensional Inspection · Sample Approval · Surface Inspection · Third-Party Inspection Support, according to order requirements and availability.
Stamped & Formed Part Applications
Five application directions for drawing-based OEM and project hardware.
Construction & Façade Hardware
Stainless angle brackets, connection plates, formed clips and supports for suitable façade and installation systems.
Machinery & Equipment
Mounting brackets, retaining plates, stops and formed supports for industrial machinery and equipment assemblies.
Electrical & Enclosures
Spring clips, fixing clips, cabinet mounts and compact stamped hardware for enclosure assemblies.
Outdoor & Corrosion-Sensitive Hardware
316 stainless steel and selected special grades for suitable outdoor, coastal and corrosion-sensitive components.
OEM & Project Manufacturing
Customer-specific parts manufactured according to drawings, material, formed geometry and project requirements.
What to Send for a Faster Quote
Complete project information supports a faster manufacturability review and quotation.
Frequently Asked Questions
What types of stamped and formed parts can VALTOR manufacture?
VALTOR can supply custom brackets, connection plates, clips, retaining parts, supports and other drawing-based stamped or formed hardware for industrial and project applications.
Can you manufacture stainless steel brackets for curtain wall systems?
Yes. Stainless steel angle brackets, formed supports and other drawing-based façade hardware can be reviewed according to material, dimensions, hole pattern and project requirements.
What stainless steel grades are available?
304 and 316 are the primary stainless options. Special grades such as 321, 310S, 2205, 2507 and 904L can be reviewed according to project requirements and material availability.
Can you make samples before project production?
Yes. Sample or first-article production can be arranged where required before batch or project production.
What information is required for a stamped or formed part quotation?
Provide the drawing or 3D model, material, sheet thickness, dimensions, formed features, holes, tolerances, surface finish, quantity and assembly requirements where applicable.
Have a Custom Stamped or Formed Part Requirement?
Send VALTOR your drawing, 3D model or sample and we will review the material, sheet thickness, formed geometry and manufacturing requirements for your project.
