Custom Fasteners
Non-Standard Stainless Steel Bolts, Nuts, Screws & Special Fastening Components Made to Drawings or Samples
VALTOR manufactures custom fasteners according to customer drawings, samples and application requirements, including modified standard fasteners and fully non-standard components. Supply focuses on stainless steel fasteners and industrial hardware with special dimensions, heads, threads, materials, finishes and project-specific features.
Custom Fastener Manufacturing
Modified standards and fully non-standard parts developed around real assembly requirements.

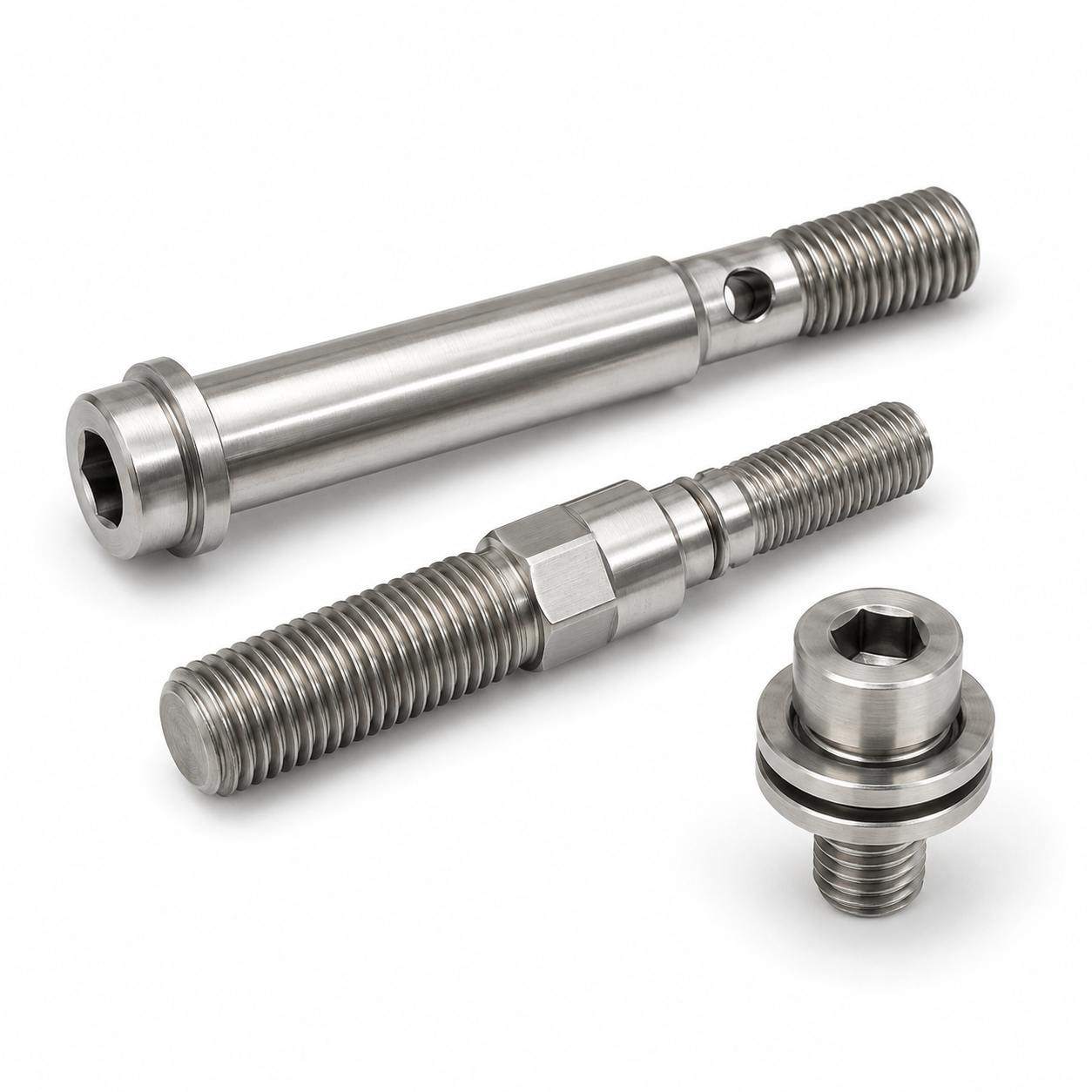

VALTOR supplies both modified standard fasteners and fully non-standard fasteners. Existing DIN, ISO or ASME designs may be adapted with special length, thread, head, reduced shank, drilled hole, custom point or washer combination. Fully custom parts are manufactured from customer drawings, physical samples, assembly requirements or OEM specifications.
Manufacturing scope includes custom bolts, nuts, screws, washers, studs and threaded components, shoulder fasteners, pins and other special threaded parts. The objective is a manufacturable component that fits the customer assembly, not a generic catalog substitute.
For review, provide the drawing or sample, material, dimensions, critical tolerance, thread definition, quantity, application and required surface finish. These inputs allow material sourcing, forming or machining routes, inspection needs and quotation basis to be evaluated efficiently.
Typical manufacturing routes may include cold forming, forging, CNC machining, turning, thread rolling, drilling and secondary operations according to part geometry, material, tolerance and order requirements.
What We Can Manufacture
OEM capability for modified standards and drawing-based fastening components.
Custom Bolts
Special head, shoulder, T-bolt, eye or swing style, custom shank and drawing-based bolts.
Custom Nuts
Special hex, thin, weld, lock and machined nuts with non-standard thread or geometry.
Custom Screws
Special head, security, captive, self-tapping, special point and OEM machine screws.
Custom Washers
Special ID, OD and thickness; bowl, taper, serrated and stamped washer components.
Studs & Threaded Components
Double-end, partial-thread and custom studs, threaded rods, anchor rods and reduced-shank parts.
Special Fastening Components
Pins, shafts, threaded inserts, retaining parts, assembly hardware and customer-specific fasteners.
Stainless Steel & Special Material Options
Stainless steel is VALTOR’s primary custom-fastener material; special grades depend on order requirements and sourcing.
304 / A2
General industrial and corrosion-resistant applications.
316 / A4
Marine, coastal, humid and corrosion-sensitive applications.
321
Stabilized stainless applications where specified.
310S
High-temperature stainless applications where specified.
2205 Duplex
Higher strength and improved chloride resistance.
2507 Super Duplex
More demanding corrosion and strength requirements.
904L
Special corrosion-resistant industrial applications.
Other Materials
Carbon steel and alloy steel where required.
Special stainless grades are available according to order requirements and material sourcing; this does not imply standard stock or unsupported performance guarantees.
Custom Geometry, Threads & Functional Features
Options are reviewed as a complete component and remain subject to manufacturability review.
Head Options
Hex · Socket · Button · Countersunk · Pan · Flange · Drawing-Based Head
Drive Options
Hex Socket · Phillips · Slotted · 6-Lobe / Torx Style · Combination · Security · Custom
Thread Options
Metric Coarse / Fine · UNC · UNF · Left-Hand · Partial / Full Thread · Special Pitch
Shank / Body Features
Reduced Shank · Shoulder · Knurl · Cross / Axial Hole · Groove · Flat · Point · Captive Section
Custom Dimensions
Diameter · Length · Thread Length · Head Diameter / Height · Shoulder Diameter / Length
From Drawing or Sample to Production
A controlled six-step path from technical review through export delivery.
Drawing, sample, material, quantity and application.
Geometry, tolerance, thread, forming and machining review.
Stainless grade or alternative material confirmation.
Initial parts where required for approval.
Manufacturing to approved requirements and plan.
Order-specific and export-ready packing.
Quality Control for Custom Fasteners
Inspection focuses on the dimensions, material and functions defined by the approved requirement.
Dimensional Inspection
Diameter, length, head, shank and critical custom dimensions.
Thread Inspection
Suitable thread gauges, pitch verification and mating-fit checks.
Material Verification
Material certificate, raw-material report and PMI where required.
Functional & Assembly Inspection
Mating fit, assembly trial, captive function, washer retention and application-specific checks.
Custom Fastener Applications
Drawing-based fasteners developed for real industrial assemblies and project requirements.

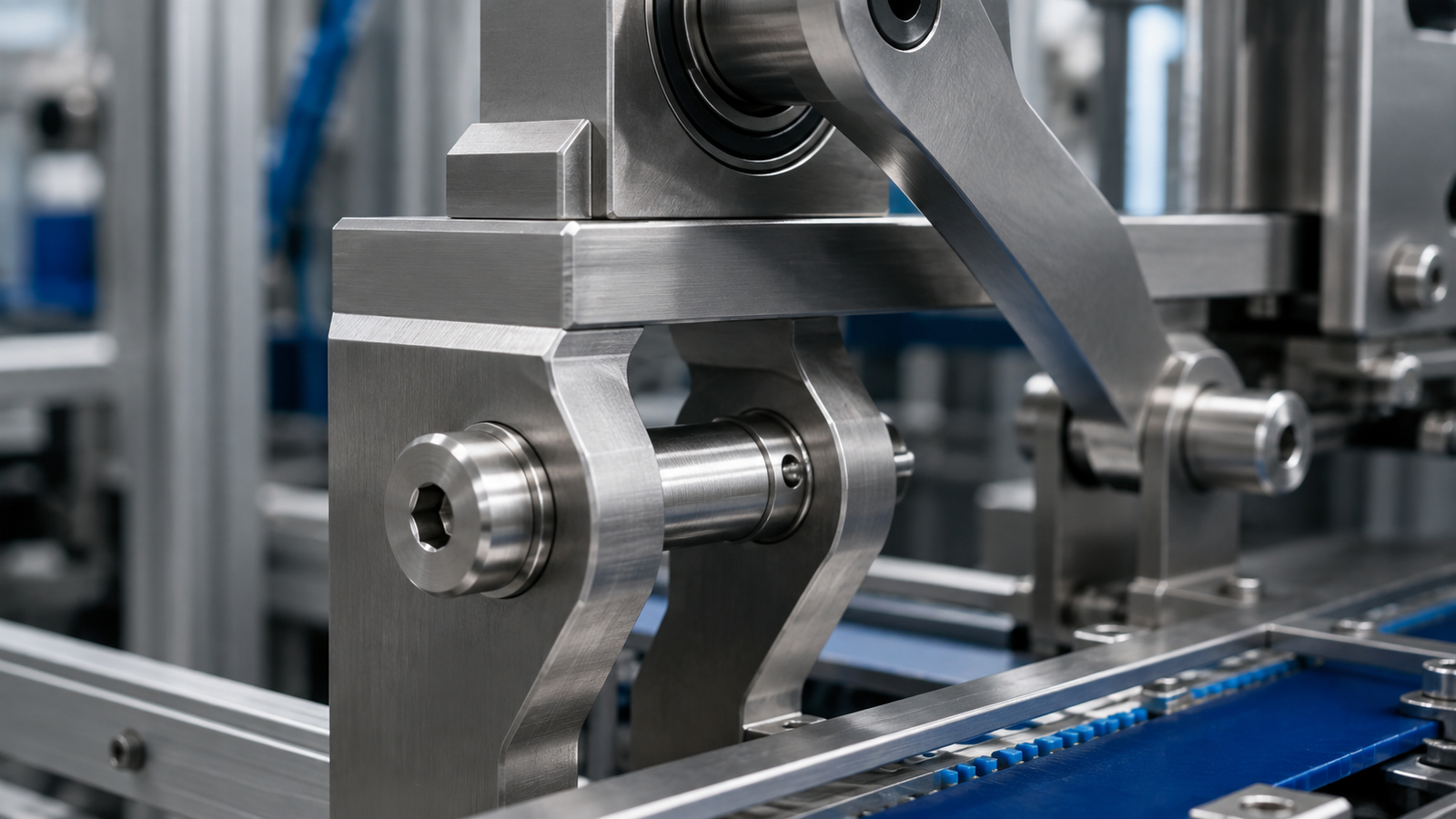

Machinery & Industrial Equipment
Machine assemblies, equipment frames and special mechanical connections.
Construction & Structural Hardware
Drawing-based bolts, nuts and parts for construction and steel supports.
Marine & Coastal Hardware
316 / A4 and selected special stainless grades for suitable marine, coastal and corrosion-sensitive fastening requirements.
OEM Manufacturing
Fasteners developed around customer assemblies, drawings and production needs.
Project-Specific Fastening
Small-batch or volume supply with non-standard dimensions, materials or geometry.
What to Send for a Faster Quote
Complete technical information helps us review manufacturability and prepare an accurate quotation.
Frequently Asked Questions
What types of custom fasteners can VALTOR manufacture?
VALTOR can supply custom bolts, nuts, screws, washers, studs and special fastening components based on drawings, samples and application requirements.
Can you modify an existing DIN, ISO or ASME fastener?
Yes. Standard fasteners can be modified in length, thread, head geometry, shank, holes, grooves, material and finish, subject to manufacturability review. If standard dimensions or geometry are modified, the finished component should be treated as a custom or modified fastener rather than automatically considered fully compliant with the original standard.
Can you produce special stainless steel grades such as 2205 or 2507?
Yes. Grades including 321, 310S, 2205, 2507 and 904L can be supplied according to order requirements and material availability.
Can you make samples before bulk production?
Yes. Sample or first-article production can be arranged where required before volume production.
What information should I provide for a custom fastener quotation?
Provide the drawing or sample, material, dimensions, tolerance, thread, quantity, finish, application and documentation requirements.
Have a Custom Fastener Requirement?
Send us your drawing, sample or specification and VALTOR will review the material, geometry and manufacturing requirements for your project.
