Dome Nuts
DIN 1587 Stainless Steel Cap Nuts for Thread Protection
Dome nuts combine a hexagonal wrenching base with a closed rounded top that covers exposed threaded ends. VALTOR supplies stainless steel DIN 1587 cap nuts for equipment, hardware assemblies and visible fastening applications requiring protection and a clean finished appearance.
Product Overview
Dome nuts, also known as cap nuts or acorn nuts, are closed-end internally threaded fasteners. Their rounded top covers the projecting end of a bolt or stud, helping protect users and adjacent components from exposed threads.
The hexagonal base allows conventional wrench installation, while the smooth dome provides a cleaner visible finish than an open standard nut. VALTOR supplies DIN 1587 stainless steel dome nuts for equipment, stainless steel structures and hardware assemblies.
304 and 316 stainless steel options provide corrosion resistance for indoor, outdoor and exposed applications. Thread sizes, custom dimensions, packaging and order documentation can be arranged according to purchasing requirements.
Technical Specifications
Closed-End Thread Protection & Internal Clearance

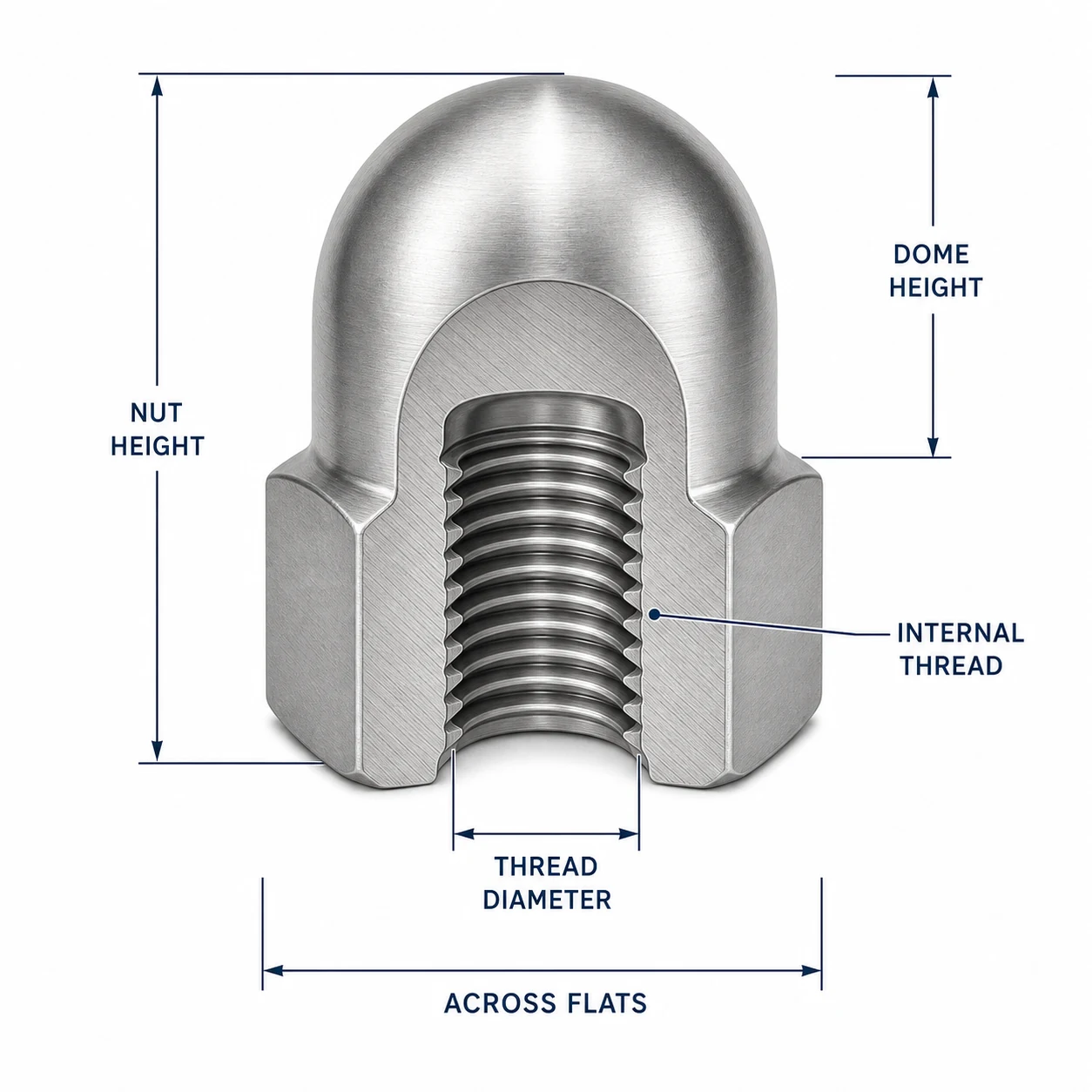

DIN 1587 dome nuts combine a hexagonal wrenching base with a closed rounded top that covers the exposed end of a compatible bolt or stud.
Material, Finish & Environment Options
Material and finish should suit the corrosion environment, visible surface requirement and mating fastener.
Finish selection depends on the base material and application; not every finish applies to every material.
Quality Control & Documentation
Inspection covers the internal thread, dome formation, usable clearance, material and visible surface condition.
Thread size, pitch, quality and mating fit are verified to the order specification. Dome and body inspection can include formation, nut height, width across flats, overall geometry and closed-end integrity. Where required, usable internal clearance is checked to help avoid bolt-end interference. Surface inspection covers burrs, scratches, finish consistency and visible forming defects. Available documentation may include a Material Certificate / MTC, raw material report, dimensional inspection report or third-party inspection support.
Packaging, Matching Fasteners & Private Label
Because the nut has a closed top, matching fastener length and projection must be checked rather than selected in the same way as for an open hex nut.
Packing for visible stainless steel parts should help reduce scratching, surface contamination and impact damage during transport.
Customer labels, part numbers, carton markings, packing quantities and customer-authorized private-label packaging can be supported. This does not imply VALTOR branding is engraved on the physical nuts.
For quotation, provide DIN 1587 or the required specification, thread size and pitch, material, finish, quantity, mating fastener information, relevant bolt or stud projection, packaging and inspection documentation. Availability and delivery depend on the complete order specification and current production conditions.
Applications
Closed-end thread protection for visible equipment and hardware assemblies.

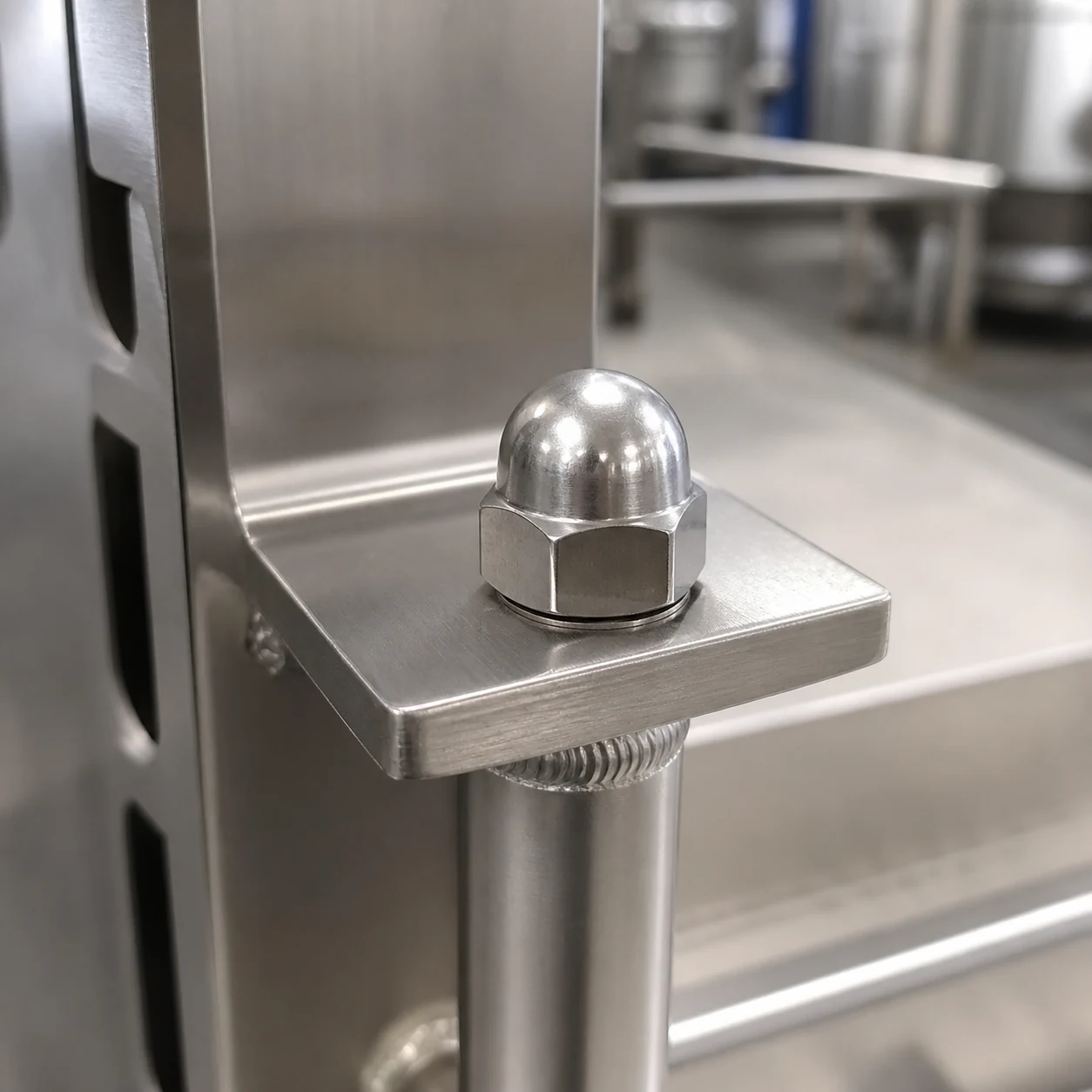

Covers visible bolt and stud ends on stainless steel frames, rails and fabricated structures.
Provides a protected finished fastening point on guards, covers and accessible equipment assemblies.
Used where exposed threaded ends need covering in commercial and industrial hardware.
Supports corrosion-resistant visible fastening on outdoor equipment and exposed installations.
Creates a smooth, clean termination where the fastening point remains visible.
Frequently Asked Questions
What are dome nuts used for?
Dome nuts are used to cover exposed threaded ends, providing thread protection and a cleaner finished appearance in fastening assemblies.
What is the difference between dome nuts and standard hex nuts?
Standard hex nuts are open threaded fasteners for general connections, while dome nuts have a closed rounded top designed to cover exposed threads.
Are stainless steel dome nuts suitable for outdoor applications?
Yes. Stainless steel dome nuts are commonly selected for outdoor and exposed applications where corrosion resistance and appearance are important.
Can dome nuts be supplied in custom sizes or packaging?
Yes. Custom sizes, packaging requirements and other supply options can be arranged according to customer specifications.
How are stainless steel dome nuts packaged for export shipment?
Dome nuts can be supplied in bags, cartons, boxes or customized export packaging according to quantity and customer requirements.
