Eye Bolts
DIN 580 Lifting Eye Bolts for Machinery, Equipment Handling & Industrial Lifting

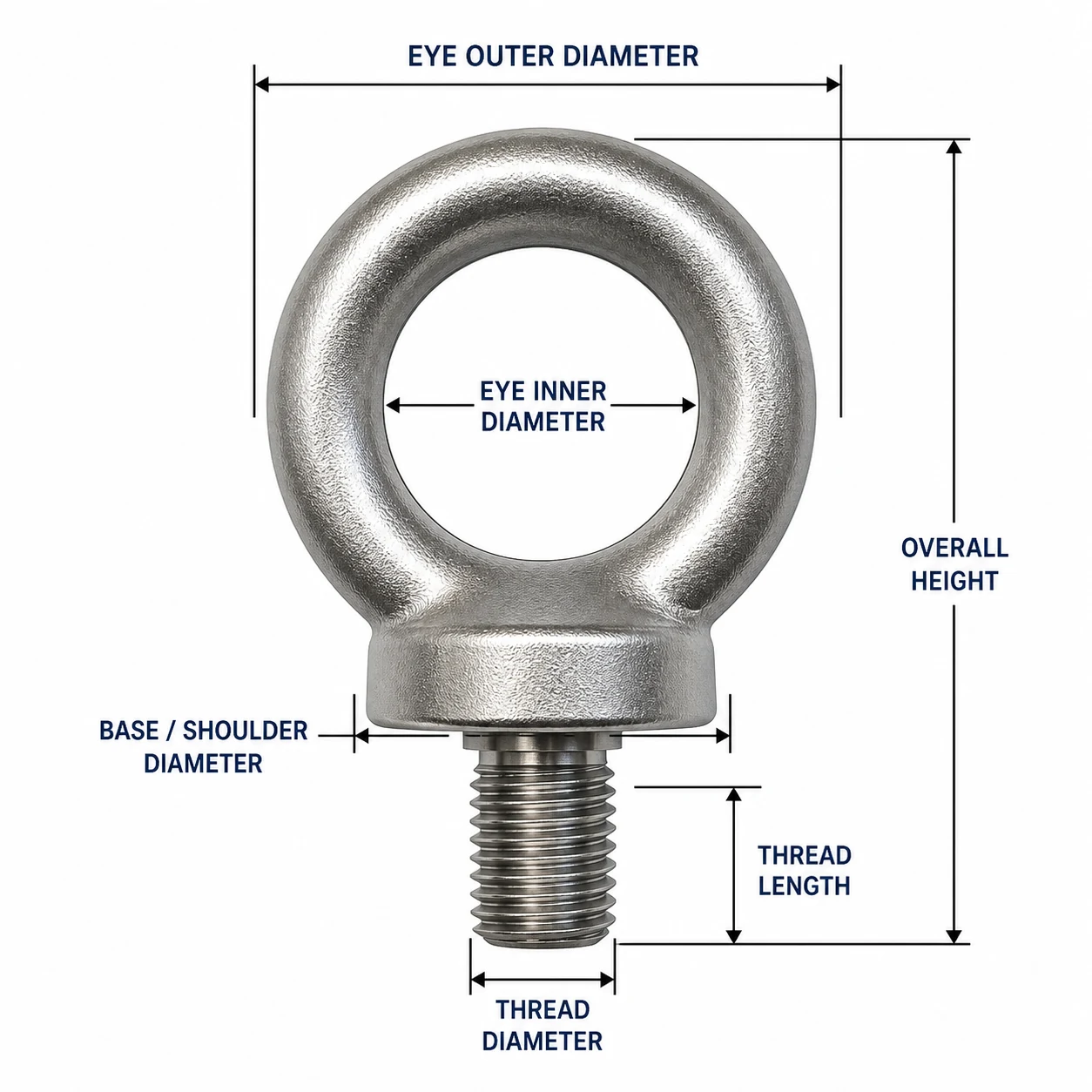

VALTOR supplies DIN 580 lifting eye bolts for machinery lifting points, equipment handling, installation and industrial assemblies. The product combines a thick closed lifting eye, an integrated shoulder or bearing base and a male metric threaded shank for installation in a compatible tapped hole.
Product Overview
DIN 580 eye bolts are threaded lifting components used to create removable lifting or handling points on machinery, equipment and fabricated structures.
The closed eye provides a connection point for compatible lifting hardware, while the threaded shank is installed directly into a suitable tapped hole or threaded component.
VALTOR supplies eye bolts in carbon steel, alloy steel and stainless steel options with different thread sizes, finishes and dimensional requirements.
Material, finish, thread size and documentation requirements should be confirmed according to the actual lifting or equipment application. Load capacity depends on the applicable specification, material, thread size, installation method, loading direction, base material and inspection requirements.
Technical Specifications
Reference fields for DIN 580 lifting eye bolt procurement; applicable requirements must be confirmed for each order.
Material Options
Material selection is subject to the applicable specification and actual lifting or handling requirements.
Surface Finish Options
Finish selection depends on corrosion environment, indoor or outdoor use and project requirements.
Lifting Point & Installation Options
Eye bolt selection depends on thread compatibility, material, installation conditions and the requirements of the lifting or handling application.
Quality & Documentation
Applications
Threaded lifting and handling points for industrial machinery and equipment.

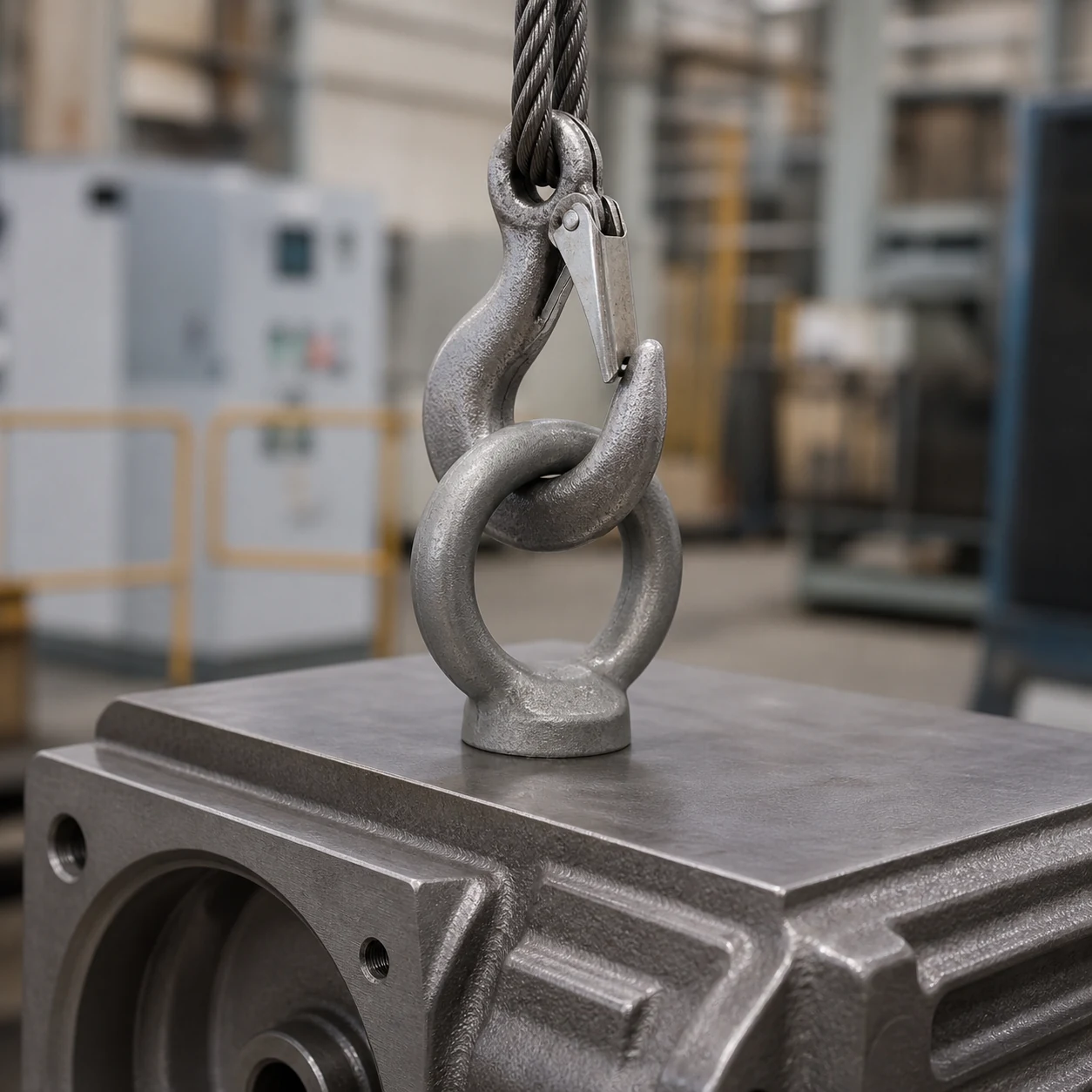

DIN 580 eye bolts are commonly installed in machinery housings and equipment components to provide removable lifting points for handling and installation.
Used during positioning, assembly and movement of industrial equipment where a threaded lifting point is required.
Eye bolts can be installed in suitable threaded locations on molds, dies and tooling for controlled handling during production or maintenance.
Suitable for equipment installation, disassembly and maintenance operations requiring temporary lifting or positioning points.
Used on fabricated machinery and industrial assemblies designed with compatible threaded lifting locations.
Frequently Asked Questions
What are DIN 580 eye bolts used for?
DIN 580 eye bolts are commonly used to provide threaded lifting or handling points on machinery, equipment, molds and fabricated industrial components.
What is the difference between DIN 580 eye bolts and DIN 444 swing bolts?
DIN 580 eye bolts are designed as threaded lifting or handling points with an integrated eye and shoulder, while DIN 444 swing bolts are pivoting fasteners used mainly for clamping and hinged mechanical connections.
What materials are available for eye bolts?
Common options include carbon steel, alloy steel, 304 stainless steel and 316 stainless steel, depending on application and environmental requirements.
Are galvanized eye bolts available for outdoor applications?
Yes. Zinc plated and hot dip galvanized carbon steel options can be supplied where additional corrosion protection is required.
Can you provide load certificates or inspection documents for lifting eye bolts?
Documentation requirements should be confirmed with the order. Material certificates and inspection documentation can be supplied according to the applicable product specification and project requirements.
Share the applicable standard, material, thread size, finish, installation conditions, quantity and documentation requirements with VALTOR for evaluation.
