Coupling Nuts
DIN 6334 Stainless Steel Threaded Rod Coupling Nuts
Coupling nuts are long internally threaded fasteners used to join two threaded rods, studs or other externally threaded components. VALTOR supplies stainless steel DIN 6334 coupling nuts for rod extension, machinery fabrication and industrial support systems.
Product Overview

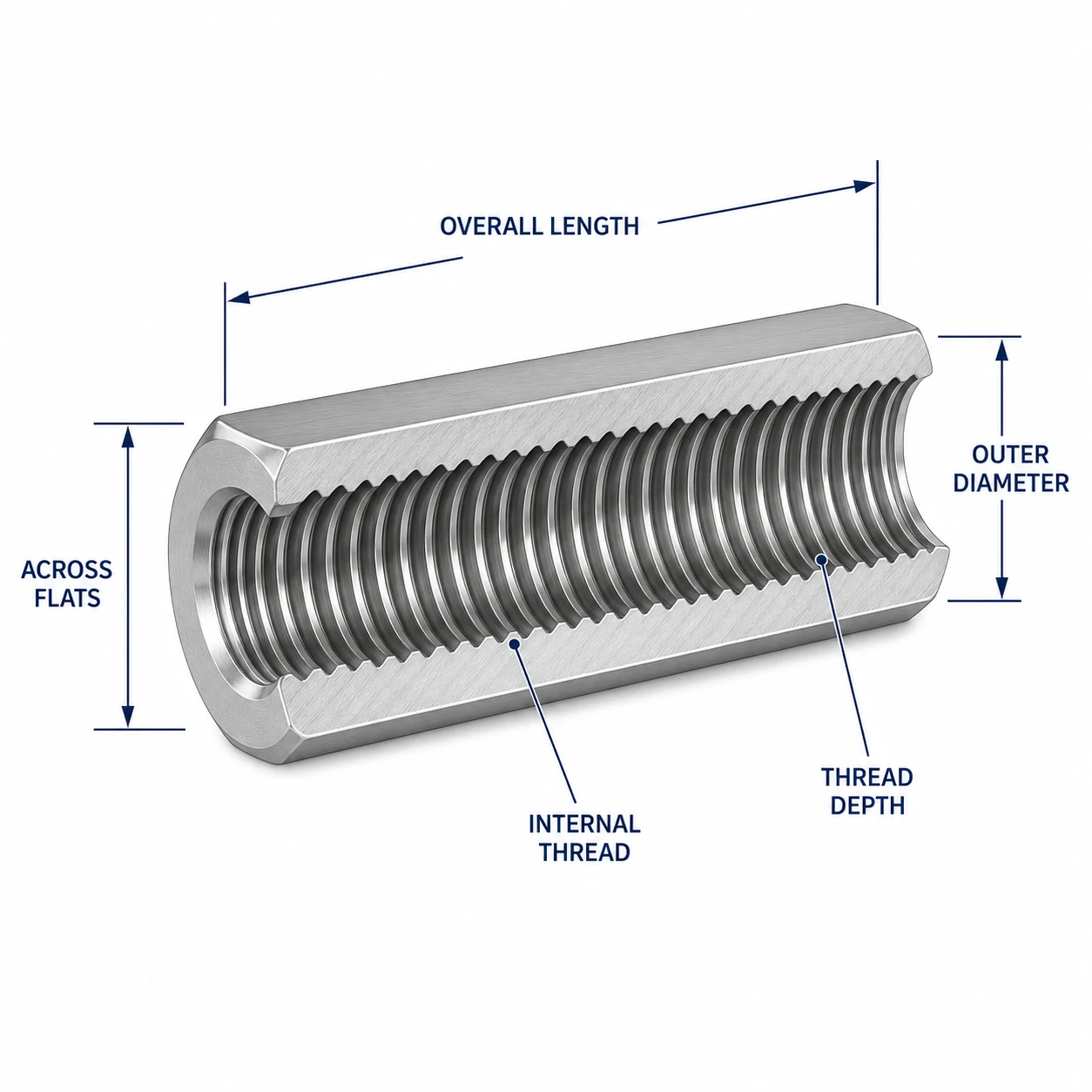

Coupling nuts, also called extension nuts or rod coupling nuts, use a long hexagonal body with internal threading through the entire length. This structure allows two externally threaded components to enter from opposite ends and form a longer aligned assembly.
VALTOR supplies DIN 6334 stainless steel coupling nuts for threaded rod extension, construction support systems, machinery fabrication and industrial equipment. Dimensional accuracy and thread compatibility are important for reliable engagement at both ends.
304 and 316 stainless steel options provide corrosion resistance for indoor, outdoor and exposed service conditions. Different thread sizes, body lengths, packaging and documentation can be supplied according to customer requirements.
Technical Specifications
Thread Extension & Rod Connection
DIN 6334 coupling nuts are elongated internally threaded hexagonal nuts used to connect or extend compatible male-threaded components.
Material, Thread & Finish Options
Material, thread and finish should be matched to the rods or studs, mechanical requirement and service environment.
Finish selection depends on the base material and application; not every finish is suitable for every material.
Quality Control & Documentation
Because coupling nuts rely on long internal engagement, thread quality across the full usable length is a primary inspection focus.
Internal thread inspection covers diameter, pitch, continuity and mating fit along the usable length. Dimensional checks may cover thread size, body length, width across flats and overall geometry. Where applicable, the relationship between the elongated body and internal thread is inspected to support reliable rod-to-rod assembly. Material, finish consistency, burrs and visible manufacturing defects are checked against order requirements. Available documentation may include a Material Certificate / MTC, raw material report, dimensional inspection report or third-party inspection support.
Packaging & Matching Fastener Supply
Mating components should be checked for thread diameter, pitch, material, finish and required engagement.
Customer labels, part numbers, carton markings, packing quantities and customer-authorized private-label packaging can be supported.
For quotation, provide DIN 6334 or the required specification, thread size and pitch, body length for non-standard parts, material, finish, quantity, matching rod or stud requirements, packaging and inspection documentation. Delivery depends on size, material, thread, quantity, standard or custom dimensions and current production availability.
Applications
Long internally threaded connections for rod extension and fabricated assemblies.

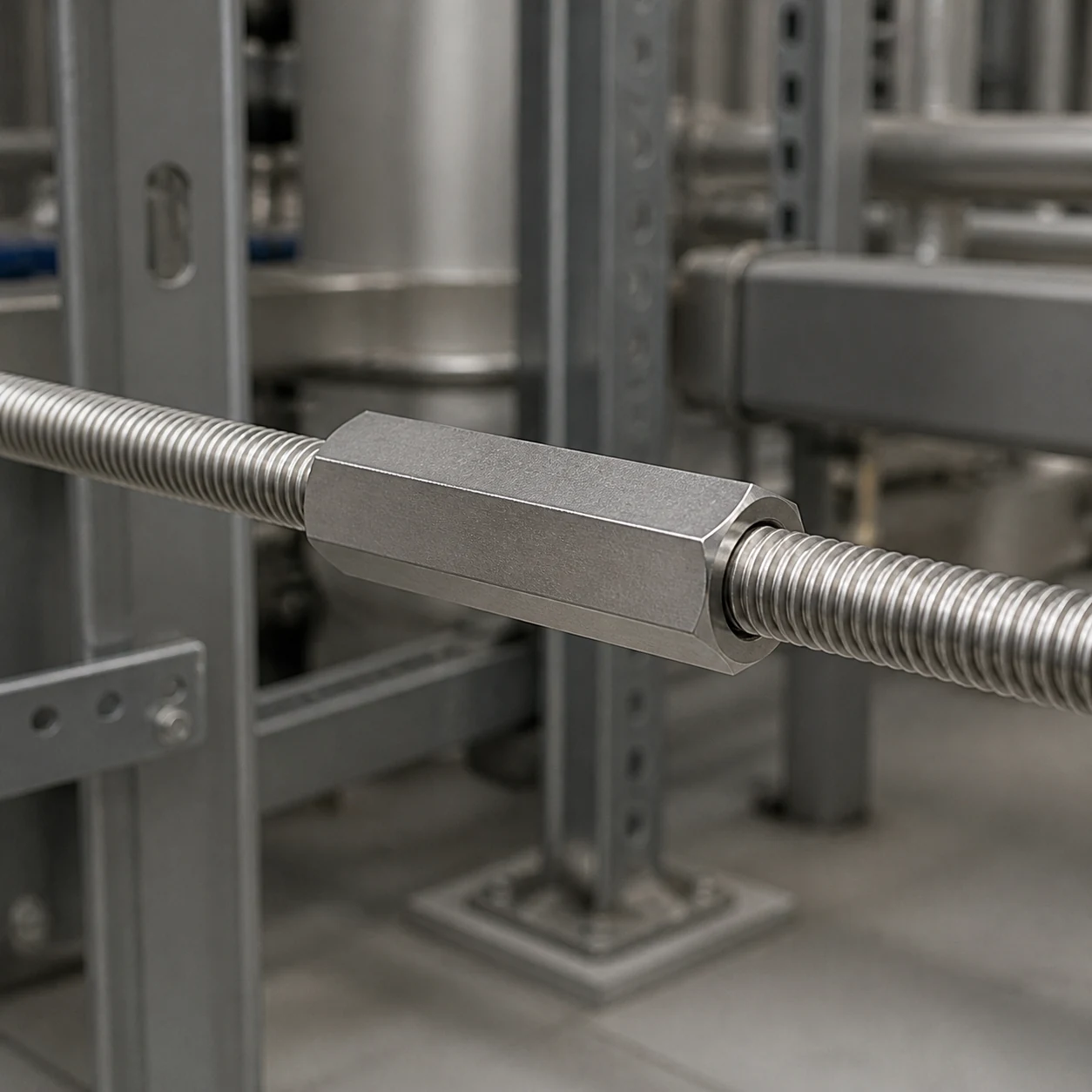

Joins two compatible threaded rods to create a longer aligned connection.
Used in suspended supports, framing and installation systems requiring extended threaded members.
Connects studs and threaded components in fabricated machine frames and fixtures.
Supports adjustable or extended threaded connections in industrial equipment.
Provides a practical connection point for project-specific threaded assemblies.
Frequently Asked Questions
What are coupling nuts used for?
Coupling nuts are used to connect two threaded rods, studs or other externally threaded components to extend connection length or create threaded assemblies.
What is the difference between coupling nuts and standard hex nuts?
Coupling nuts have a longer body with internal threading through the length, allowing them to connect two threaded components, while standard hex nuts are mainly used for securing one threaded connection.
How do I choose the correct coupling nut length and thread size?
Selection depends on the thread specification, required extension length, connection method and application requirements.
Can stainless steel coupling nuts be used for outdoor applications?
Yes. Stainless steel coupling nuts are commonly selected for applications requiring improved corrosion resistance, especially in outdoor or exposed environments.
How are coupling nuts packaged for export shipment?
Coupling nuts can be supplied in bags, cartons, boxes or customized export packaging according to order quantity and customer requirements.
Share the required material, thread size, body length, quantity and packaging requirements with VALTOR.
